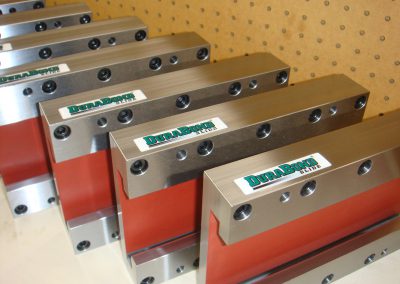

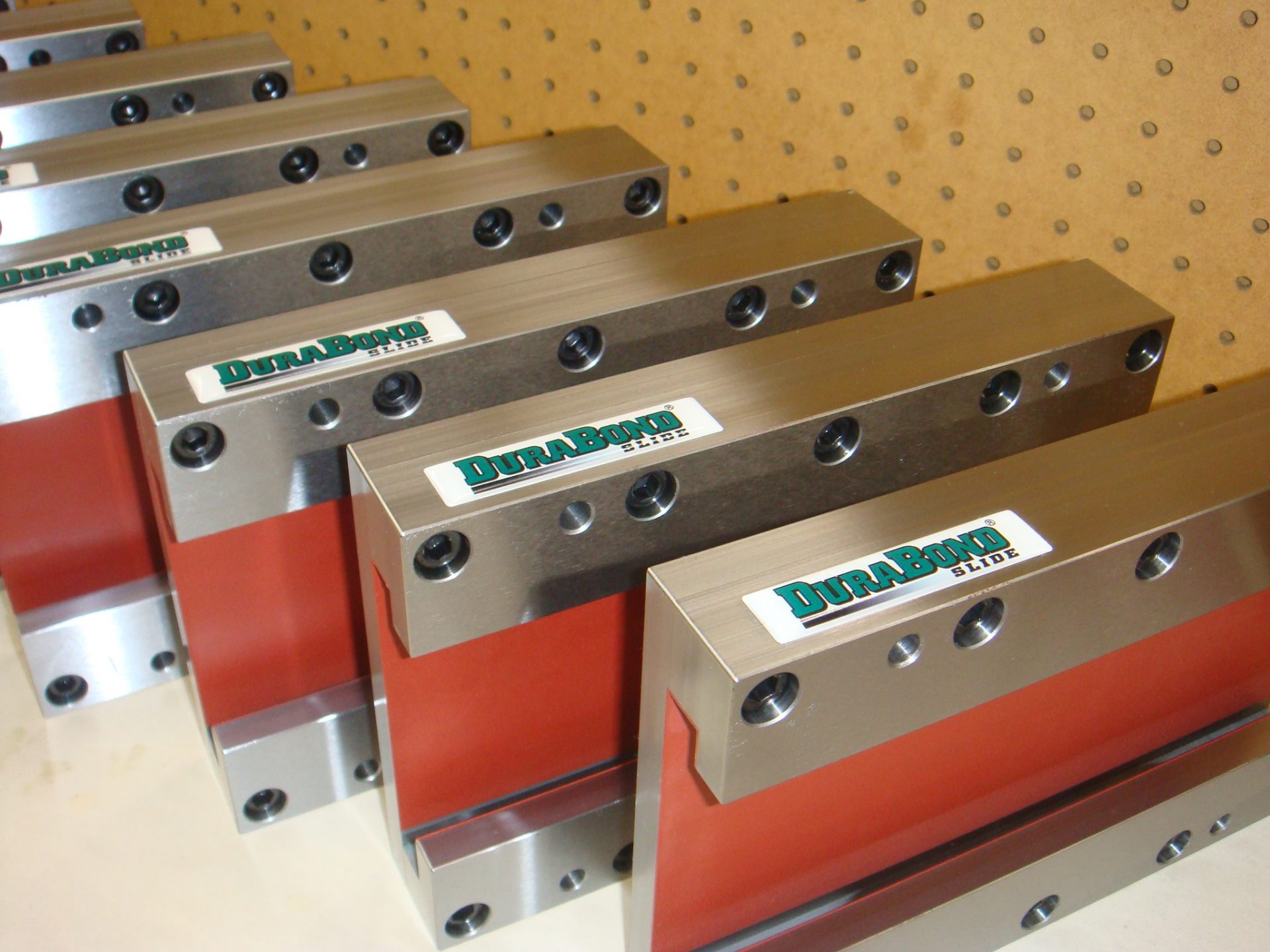

Standard Linear Slides
DuraBond Slides are available in six standard widths ranging from 2″ to 12″ and base lengths from 4″ to 32″. Our solid industrial slides are made with our unique low profile, square gib, linear slide construction provides high precision and rigidity with superior vibration dampening characteristics. DuraBond linear slides are used in heavy duty, industrial applications including machine tool, special machine and manufacturing in general.
- Standard widths of 2″, 3″, 4″, 6″, 9″ and 12″
- Standard base lengths from 4″ to 32″
- Slides are precision machined and ground from high quality tool steel

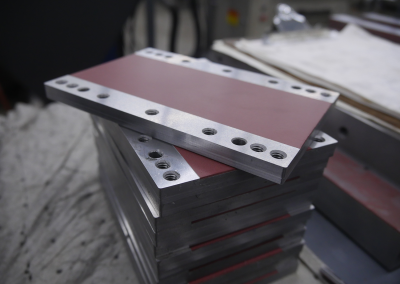

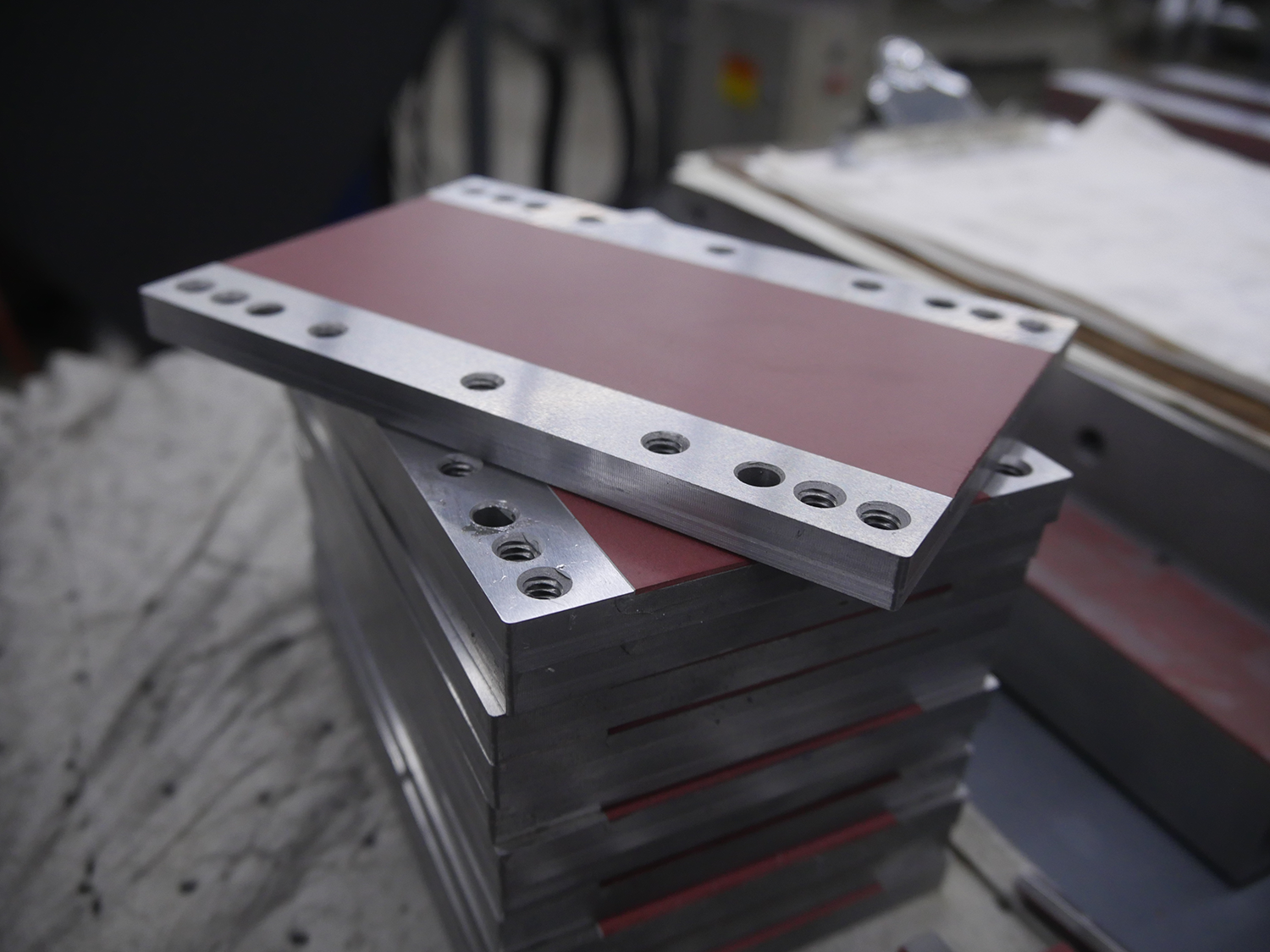

- Rulon coated bearing surfaces for low friction and long life
- Designed and developed using 3D modeling software

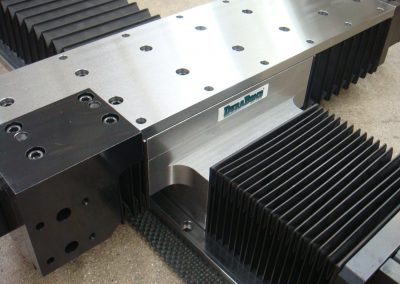

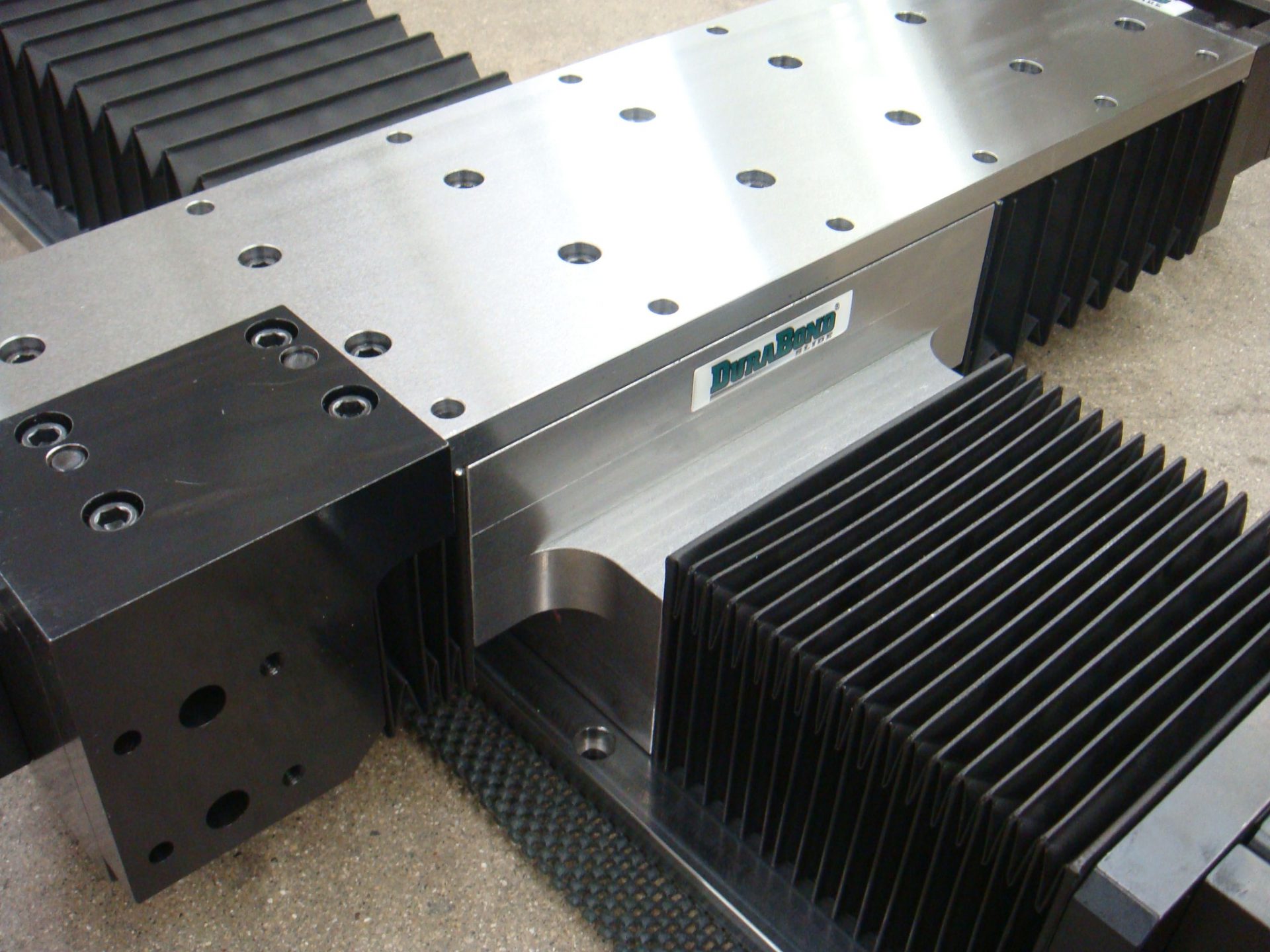

Custom Linear Slides

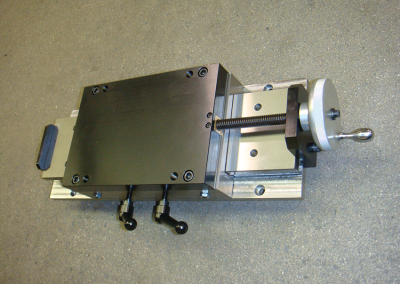

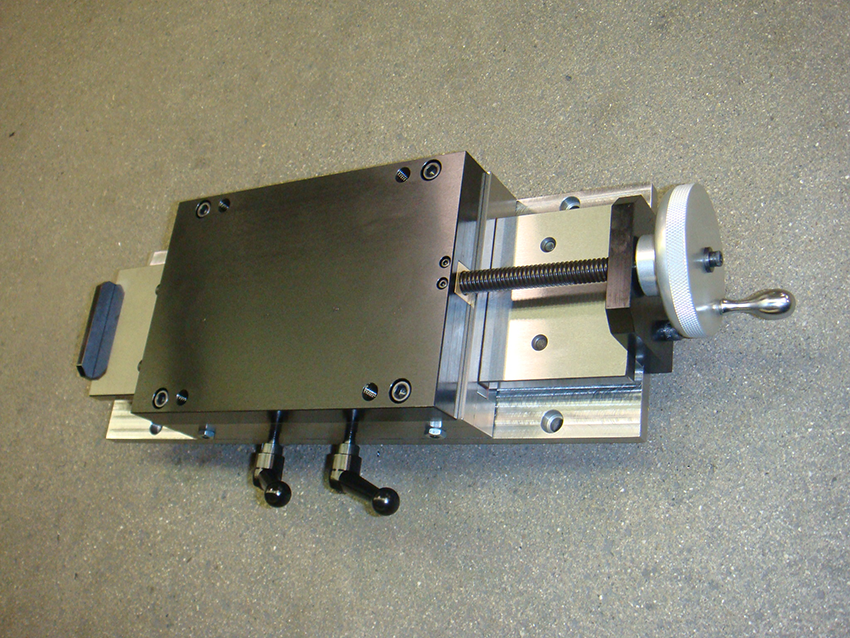

DuraBond Slide can build custom linear slides designed for specific applications where standard linear slides may not be commercially available. Most available linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings or linear roller bearings. Linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis. However, only Durabond Slide can enhance your custom manual positioning slide using our unique Rulon coated bearing surface feature, making your metal slides maintenance free, requiring no lubrication.
Linear Slide Design Features
In general, DuraBond Slides are designed to operate dry offering self-lubrication with high performance. The technical design data presented on the site represent typical performance values under controlled conditions. The requirements for you particular applications should be reviewed by a DuraBond Slide technical development engineer. Learn more about our linear slide design criteria such as recommended operating limits, bearing pressure, bearing speed, and bearing PV. You’ll see the subtle, yet significant benefits of a DuraBond Slide.
Linear Slide CAD Library
Our linear slide drawings are free to download in your drawings and will make your job easier without having to retrace from a PDF or other document. We have 2D and 3D DWG data files, AutoCAD DXF, STEP, and SLDASM SolidWorks files available and made for insertion/import into a variety of different CAD programs.
